900 sqft

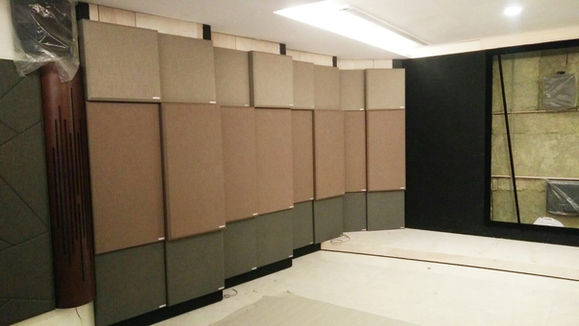

In this project, we have chosen modular acoustic panels from HOWEASY Acoustic.

Using various depth of absorbing panels, we created a undulating design. The panels have depth variation of 30mm, 60mm to 120mm. Each has its own frequency response with 120mm depth capturing the most for bass frequency.


We have chosen different approach at the sofa area. Panels inline with the sofa are both absorptive and diffusion in nature. This creates a evenly spreaded feel across a large area. These panels are pre fabricated by Howeasy Acoustics. Offering the best material and workmanship, these curved diffusers scatters sound evenly to each corner of the room, absorbing the extra low frequency to avoid vibration to the ceiling.


Wooden Groove Panels


The ceiling height is 2700mm. In order to complete the termination, we have covered the bottom and top remaining space with black acoustic Fybre.



These black material further absorb noise and bleeding light from the projector.  Making it ideal for deployment in the ceiling and beside the projection screen.

high-density-polyester-acoustic-fibre-bo
Fix Frame.jpg

Acoustic Transparent Fix Frame 8 from Lyft screens.

As the overall room non dark, we've decided to deploy Acoustic white weave material in this project.

​To ensure it has the minimum lux per square feet, we carefully calculated the requirement for a 180" Whie screen with a gain of 1.0. In this project, we will require a minimum of 1500lm to enable clarity. We have chosen Sony VW320 as our projector. It delivers brilliant natural light 4k images.

With a screen gain of 1.0, It allows client to watch, sing and game at the same room.

front speakers.jpg

Hidden Speakers

We have embedded all speakers. Left, right, center, and front sub woofers all in the fake wall. Speakers are buried deep into pockets surrounded by rockwool. This creates the baffle wall effect. Purging all the sound in a single front direction.

Baffle Wall effect

Project specifications

Room size: 900sqft

Main/Movie Systems: 9.2

Demark Audio Left Top Speaker 8"

Demark Audio Right Top Speaker 8"

Demark Audio Left Speaker 12"

Demark Audui Right Speaker 12"

Demark Audio Center Speaker 6.5"

Demark Audio Surround Left Speaker 6.5"

Demark Audio Surround Right Speaker 6.5"

Demark Audio Surround Back Right Speaker 6.5"

Demark Audio Surround Back Left Speaker 6.5"

Demark Audio Non Ported 10" x 2 woofer x 2 sets

LVA - KTV - Movie Processor
LVA 500 Multi Channel Power Amplifier

LVA 300 Multi Channel Power Amplifier

Cambridge Audio Bluray

Apple TV

Sony VW320 Projector

180" HD 3D Audio Transparent Lyft 8 Screen

Karaoke Systems:

Thunderstone K Bubbles CS Server

Mika 21.5" CTS Touch Screen

TSM 600 Microphone

Schutz Kraft Power sequencer x 2

32U Wall hung Rack unit

8 Port 10/100/1000 Switch

Acoustics / Furnishing:

EQ Series Acoustic absorber

Wave 600 diffuser Panels

Fybre Felt Series - Front/rear wall sound absorbing

Carpentry frame

Philips Hue Light Strip

Philips Hue  Bridge

Trimless LED Spot lights

Project Cost:

Sound system: $75,000

Furnishing / Acoustics: $40,000
